CAH (14) -280 -Robot Keying Transformer Core Processing Center

Robot Stacking machine - Transformer Core Processing Center

CAH(24)-400 ROBOT

400 two-shear four-punch core processing center
【Siemens series electric two-shears and four-punch, robot stacking the entire transformer core, stacking two at a time】
Adopt the follow-up shearing technology, the two sets of punching can be moved at high speed.

Main Components of the production line

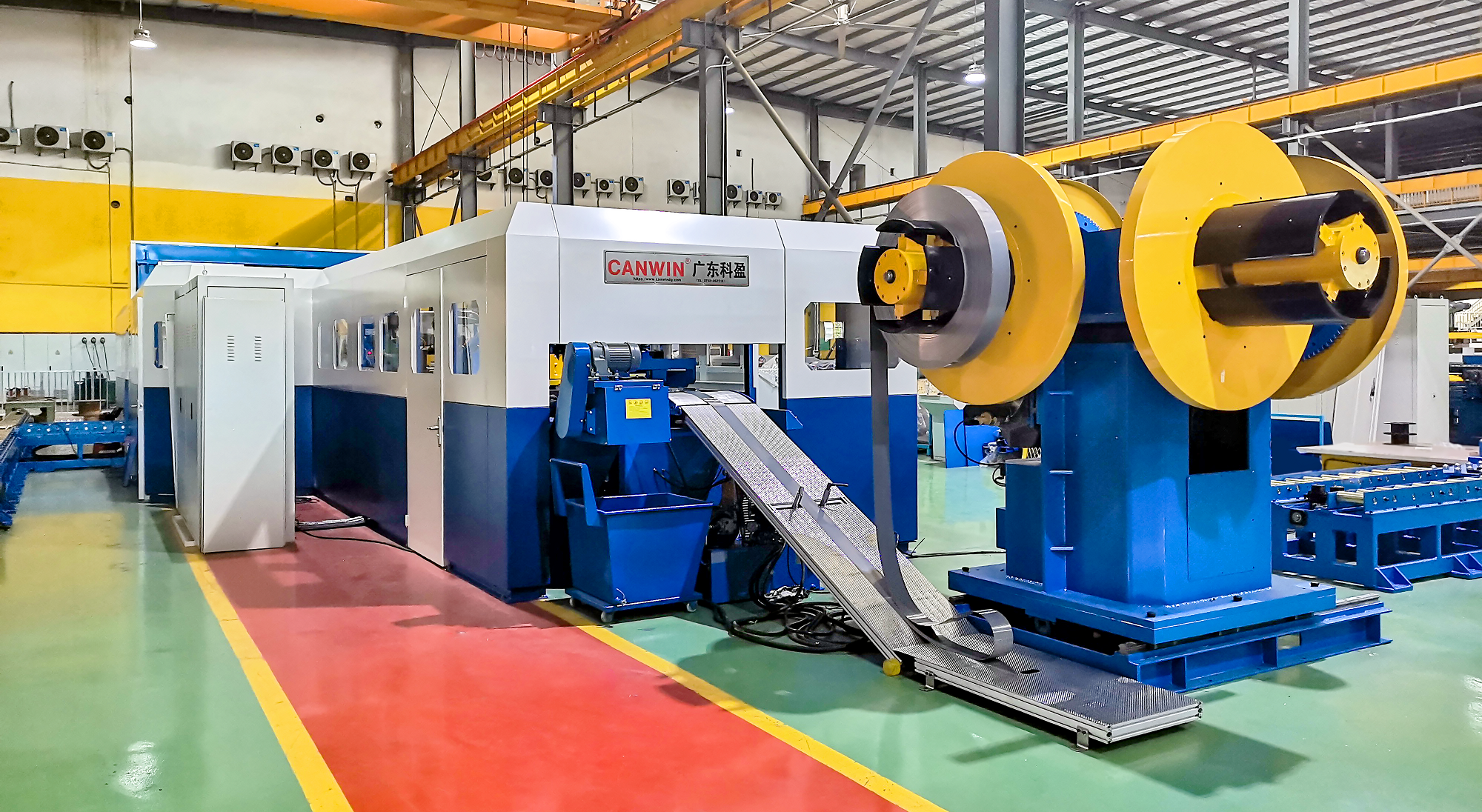

1. Four-head uncoiler (hydraulic tensioning, electric rotation)
2. Pitless slope material guiding device (magnetic adsorption, pneumatic material pressing arm)
3. Feeding machine (driven by servo motor, length measuring device)

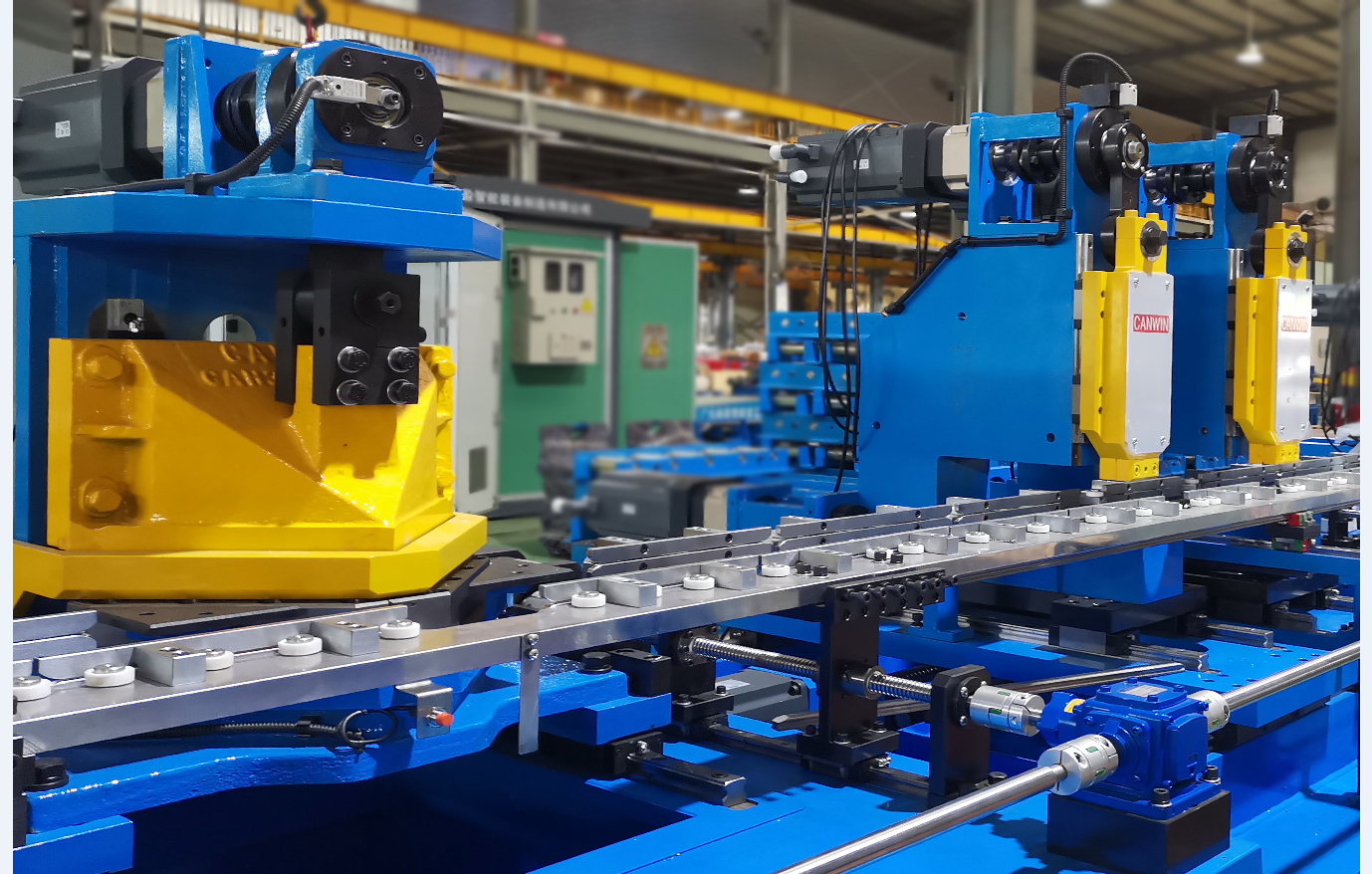

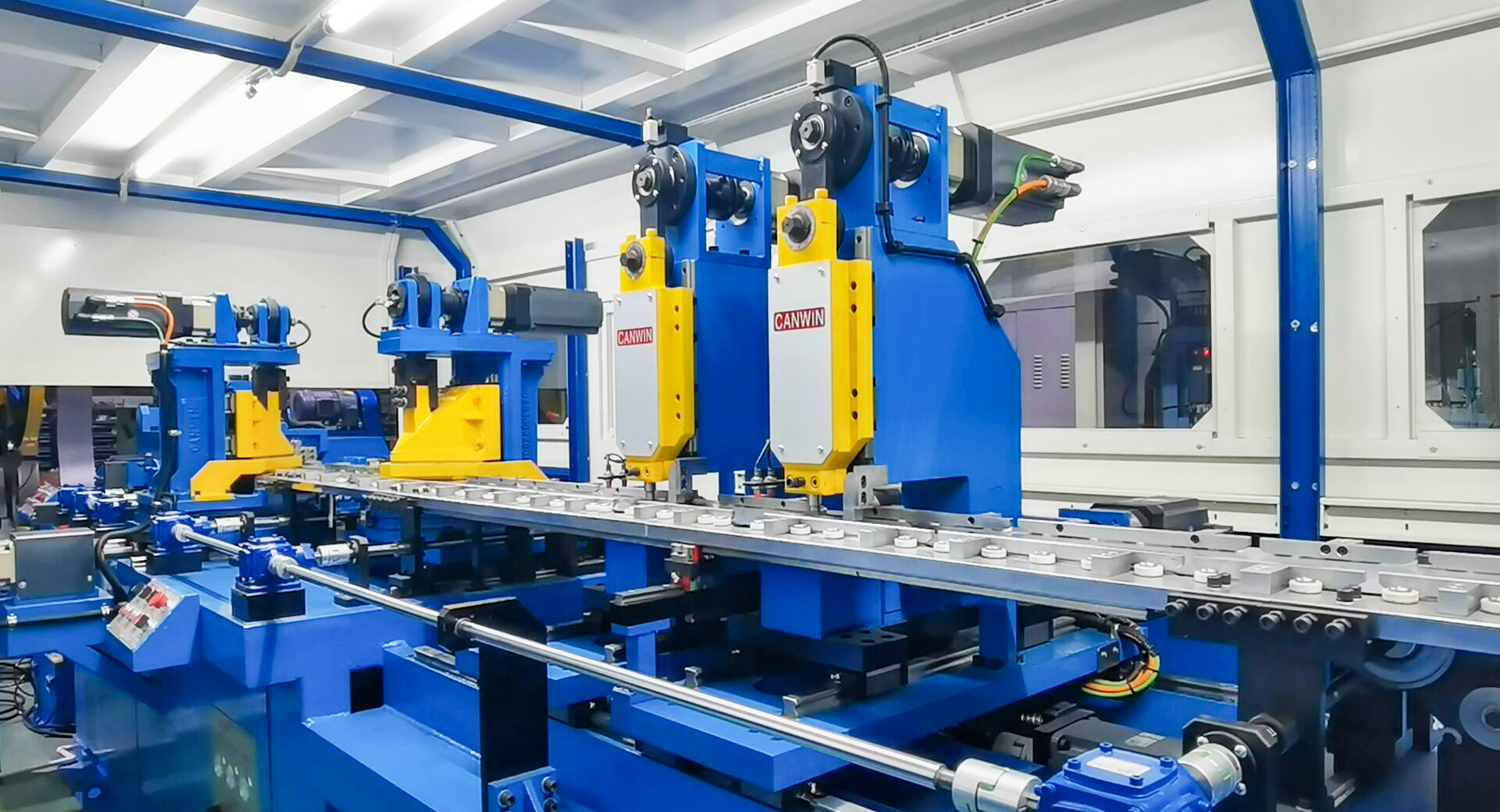

4. The punch section (including two V-shaped punch presses and two sets of cutting tools. The blanking is driven by servo motors, with longitudinal fixation and transverse servo movement. The two V-punch presses are arranged in opposite directions.) It includes two punching presses, and the punching can be servo-moved both longitudinally and horizontal.
5．Micro-tension material pulling system
6. Shearing section (Two shear, and the shearing is driven by servo motors; Central discharge device;)
7. Stacking table
8. Double-station exchange type threading and material handling mechanism

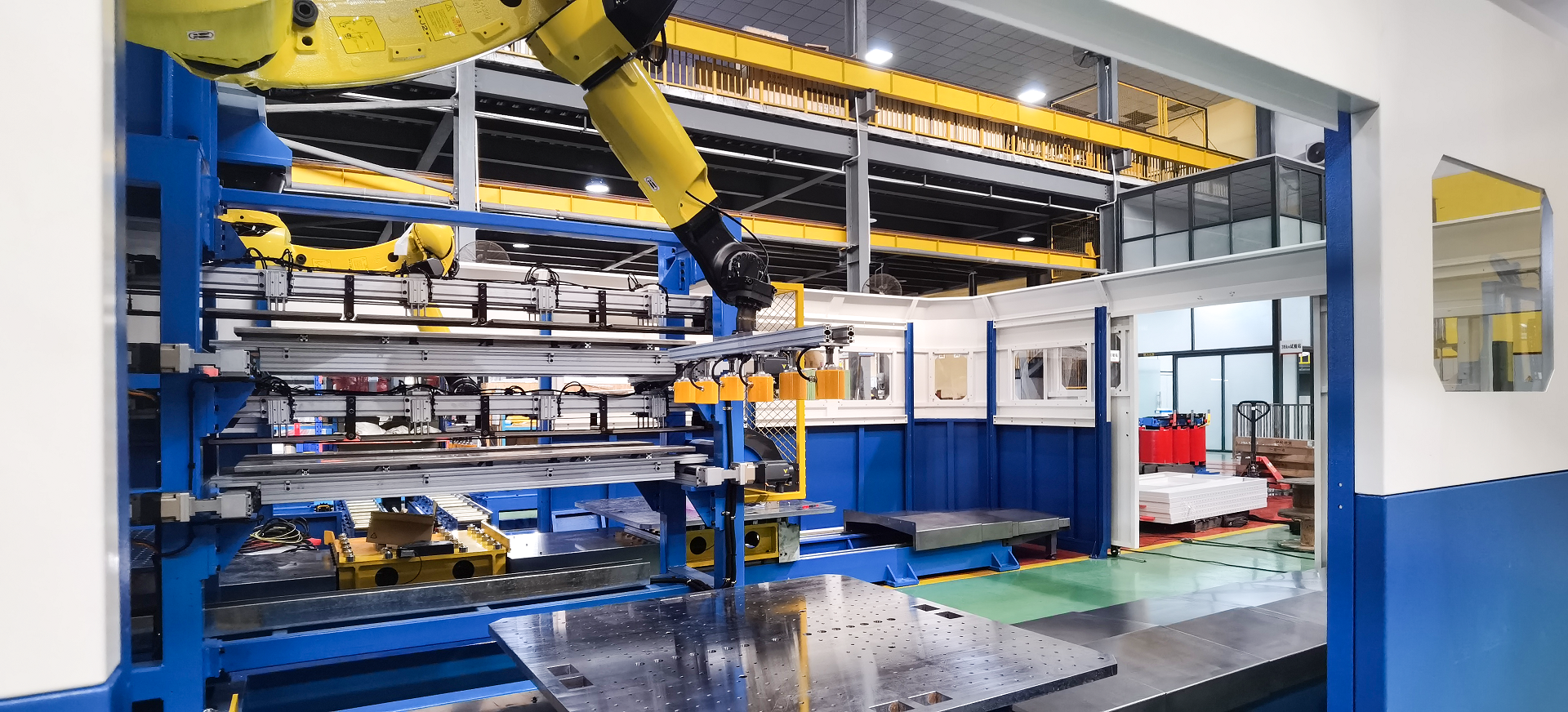

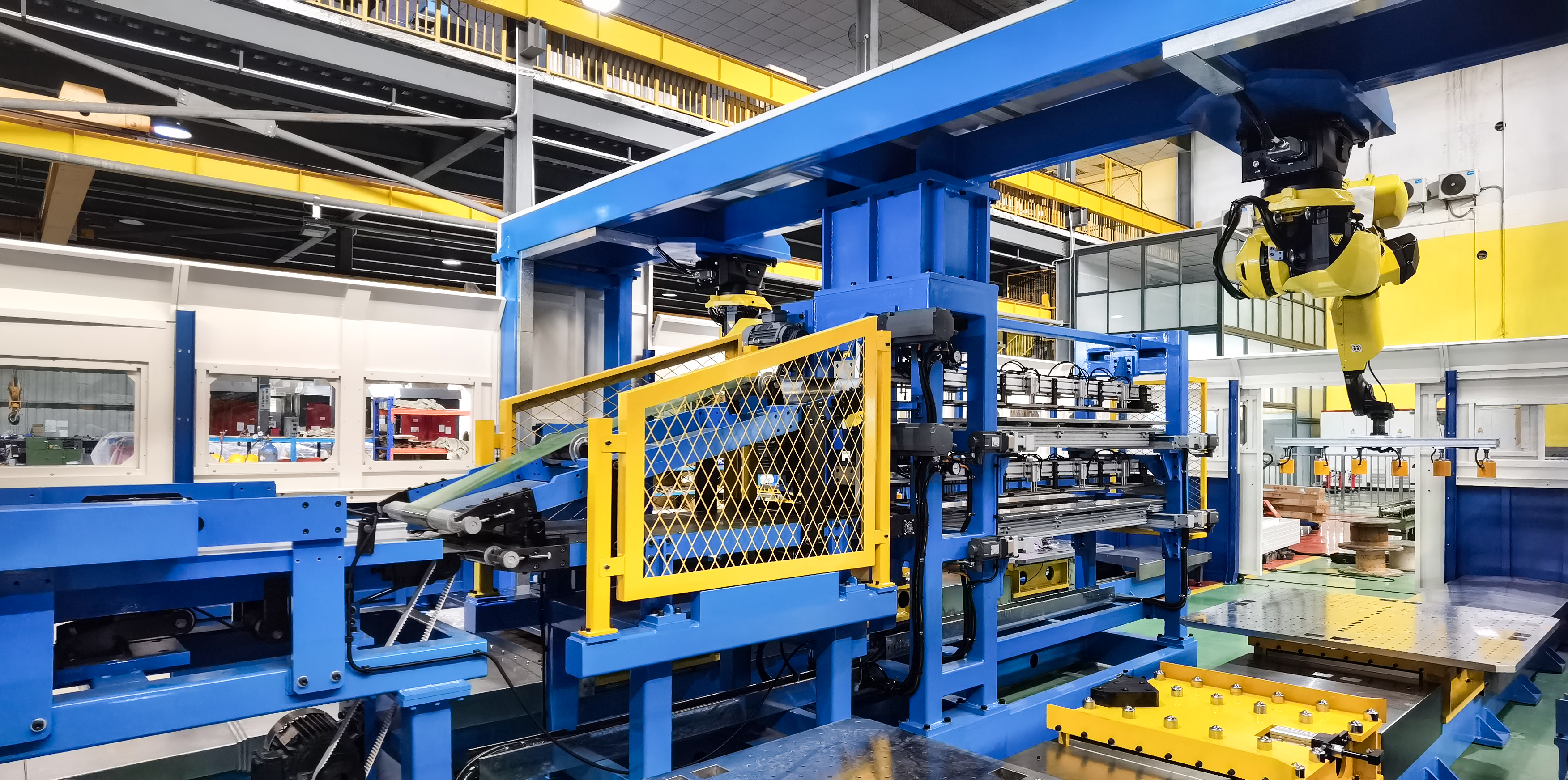

9．Robot laminating mechanism
10. Full-line width adjustment system
11．Pneumatic system
12．control system
13．Scrap collection system
14．Remote diagnosis function service.

Main technical parameters
Raw material parameter
1. Material CRGO
2. Coil ID Φ495～Φ510mm
3. Coil OD ≤Φ1200mm
4. Coil weight ≤2500kg
5. Material thickness 0.18～0.35mm
6. Material thickness 60～440mm
7. Material width tolerance 0～-0.1mm
8. Material burr ≤0.02mm
9. Material S degree Within 1000mm Single direction less than 0.1mm
10. Material wave degree ≤15 mm /1000mm
(Span no less than 1000mm and height no more than 15mm)
The processing range and precision

Processing scope of the production line
1 . Cutting width 60～440mm
2 . Cutting length 400mm（center length）-2300mm（tip to tip）
3 . Punching hole diameter Φ10.3、Φ16.3
4 . Aspect ratio of sheet material It can satisfy 1.5 times

Quantity:
Availability:





Inquire Add to Basket

Model:
CAH(14)-280 -Robot
Brand:
CANWIN
Code:
846242900

Product Description

Professional customized transformer core processing center

Guangdong Keying Transformer Core Processing Center adopts Siemens system, which can support shearing modes such as two shears and three punches, two shears and four punches, two shears and six punches, and two shears and eight punches. According to the cutting width, it is divided into 300 type, 450 type, 650 type, 850 type, 950 type, and 1250 type can be customized. Combined with Keying's sleeve-type high-speed slitting line, intelligent storage warehouse, and dozens of processing center combinations. It solves the past problems of only cutting but not stacking in the cross-cutting line, requiring repeated transportation by transfer cars, troublesome pre-positioning of mechanical truss laminations, low work efficiency, large floor space, and the need for many manpower! It is especially suitable for the standardized production of super enterprises in the future power field (annual output of 50,000 units, 100,000 units, and 1 million units of iron cores).

Features

1) Save manpower, only one person can operate it.

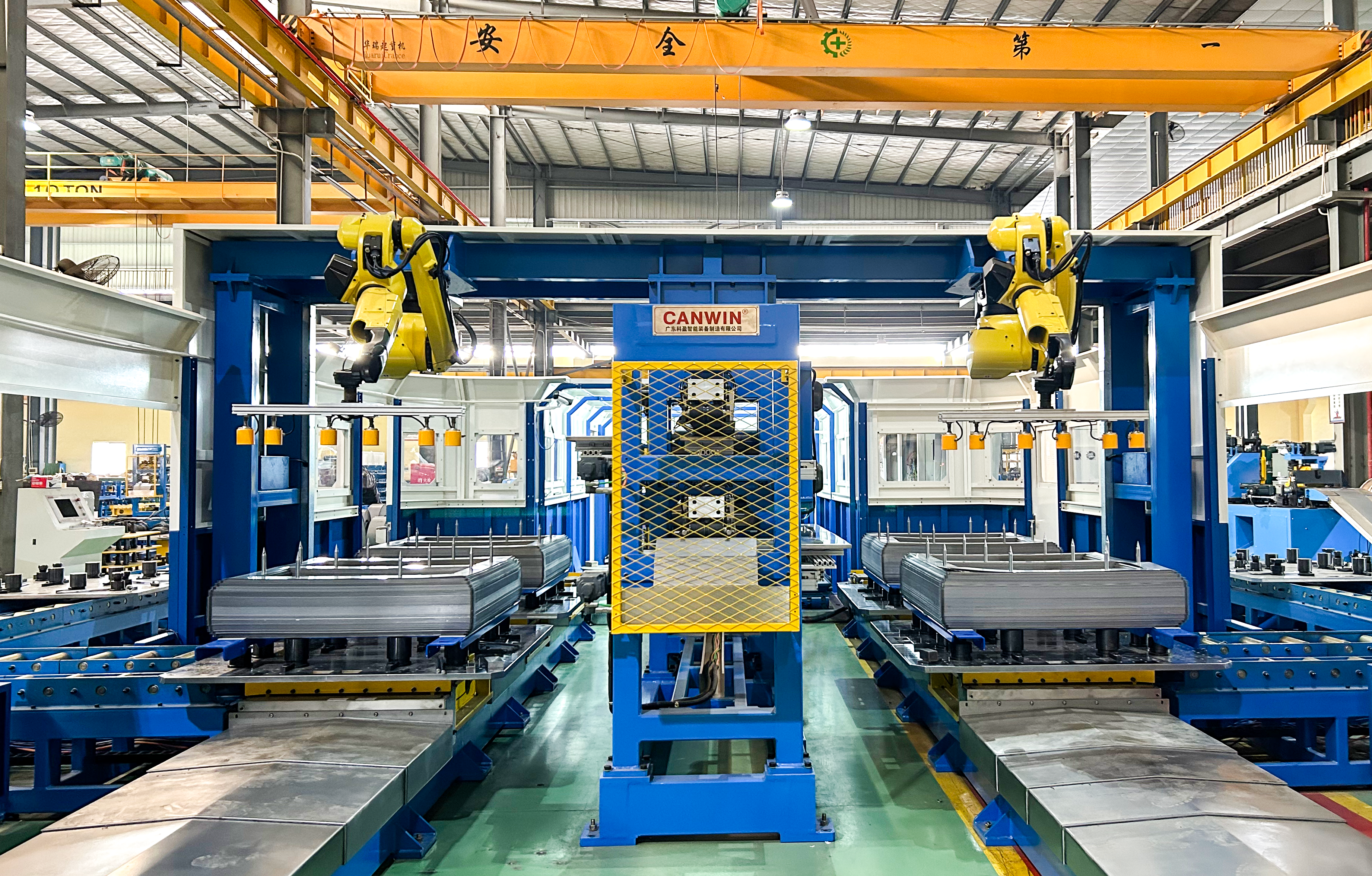

2) High efficiency, 7 pieces can be grabbed at one time, and the dual robots can pick up 14 pieces at a time. 6 machines can be stacked in one shift for less than 800, and 4 machines can be stacked for more than 800.

3) Material loss is small, heavy manual handling work is not required, and there is little damage to the silicon steel sheets.

4) Save space and only need a location of 12 meters x 24 meters.

5) The material utilization rate is high, there is no excess waste, and it is stacked immediately after cutting. It is a true Industry 4.0 equipment.
